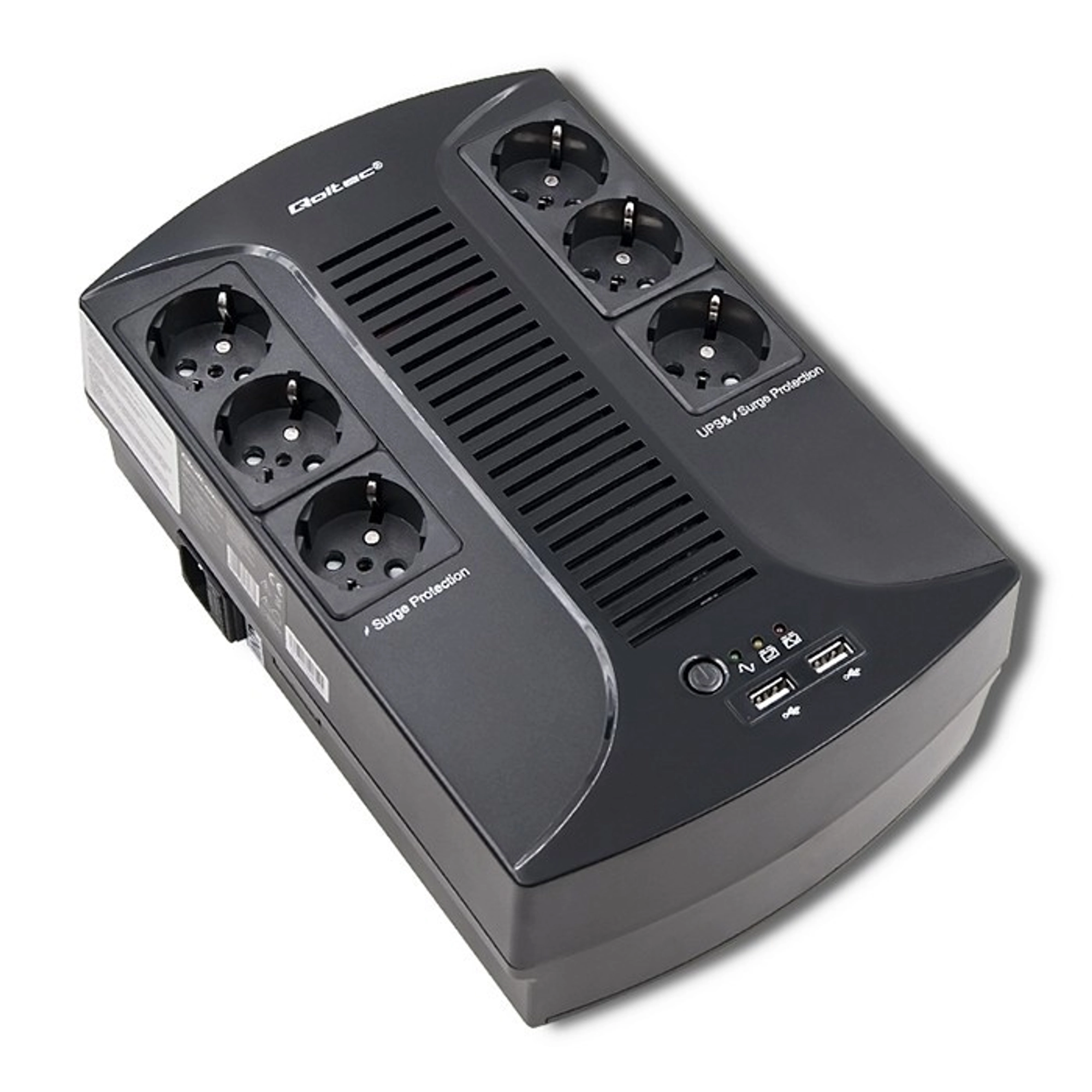

UPS 850VA QTEK 510W WITH 6 OUTPUTS

• Super compact UPS with nominal power 850VA/510W
• With AVR voltage stabilizer function
• Interactive line with pseudo-sinusoidal output
• Digital microprocessor control
• Equipped with 1 x 7Ah battery

Specifications

• Rated input voltage: 220/230/240 Vac +/-25%
• Frequency: 50/60Hz auto-sensing
• Power VA/W: 850VA/510W
• Rated output voltage: 220/230/240 Vac +/-10%
• Waveform:

– AC mode: Pure sine
– Battery mode: Pseudo sine

• Switching time: 2-7ms
• Automatic diagnostics at startup
• AVR Voltage Stabilizer
• Auto Restart function: automatic restart when mains power returns
• Cold Start function: possibility of starting from battery
• Intelligent battery charging management and over-discharge protection
• Battery charging even when the UPS is off
• Outputs with surge protection
• Overload, short circuit protection

Connections

• Input plug: 1 x IEC 320 C14 10A
• Output sockets: 6 x Schuko, 3 of which are protected against overvoltage; 2 USB sockets
• Telephone network protection via RJ11 connector
• USB communication port

Physical characteristics

• Dimensions: 95 x 185 x 280 mm
• Operating temperature: 0-40°C
• Relative humidity: 10-90% RH non-condensing
• Black colour

Package Contents:

• 850VA UPS with stabilizer with AVR
• 1 x 10A input cable
• 1 USB cable and software
